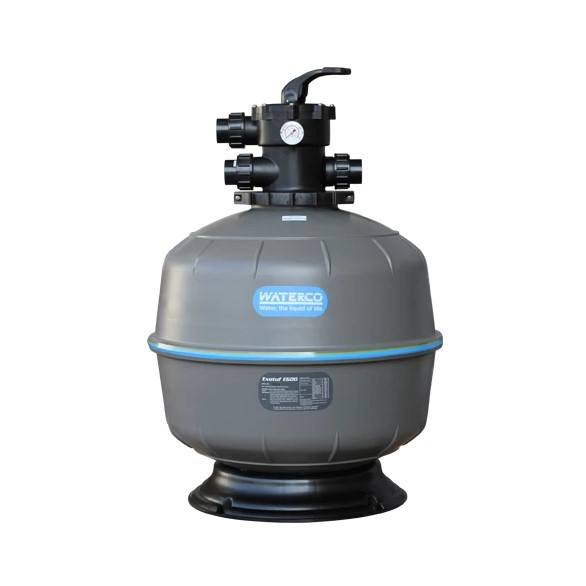

Waterco Exotuf Top Mount Sand Filter

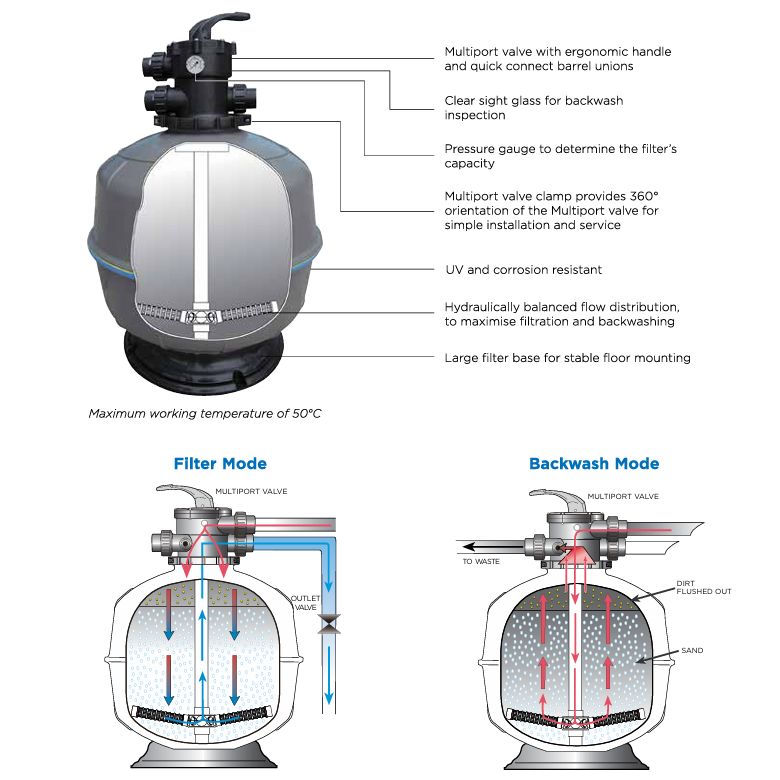

Designed to handle the cyclic pressures of modern swimming pool systems, the Waterco Exotuf is precision injection moulded for strength and dependable filtration. Its hydraulically balanced Fish Tail lateral system improves filtration and backwashing efficiency, making it ideal for pools with in-floor cleaning systems and high-powered pumps.
Granular media filtration for crystal clear water
Multiport valve for easy operation and maintenance
Pressure rated at 350 kPa for enhanced safety
Corrosion and UV resistant construction
Price on request — enquire for a quote.
10-Year Domestic Tank Body Warranty

Product Details

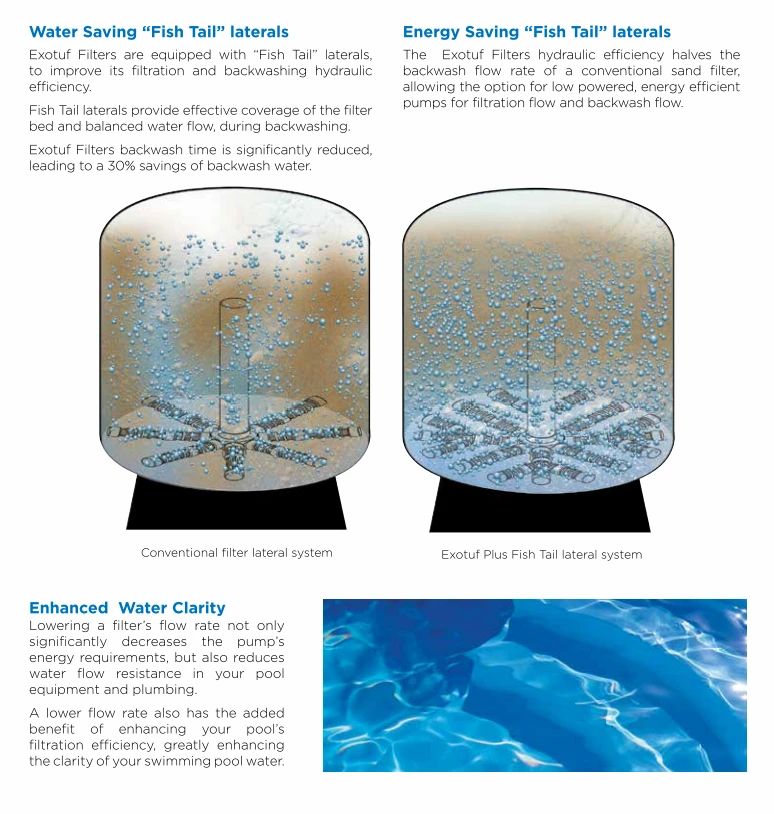

Efficient Filtration with Fish Tail Laterals

Waterco Exotuf filters use hydraulically balanced Fish Tail laterals to provide effective coverage across the filter bed and balanced water flow during filtration and backwashing.

This improved hydraulic design helps maximise filtration efficiency while reducing the time and water required during backwashing.

  • Balanced Water Distribution – Fish Tail laterals distribute water effectively across the filter bed for improved filtration and more even backwashing.
  • Up to 30% Backwash Water Saving – Reduced backwash time can provide up to 30% savings in backwash water compared with conventional filter lateral systems.
  • Lower Backwash Flow Requirement – The Exotuf hydraulic design significantly reduces the backwash flow rate compared with a conventional sand filter.
  • Enhanced Filtration Efficiency – Lower filtration flow rates can reduce water resistance through pool equipment and plumbing while helping improve filtration efficiency and swimming pool water clarity.

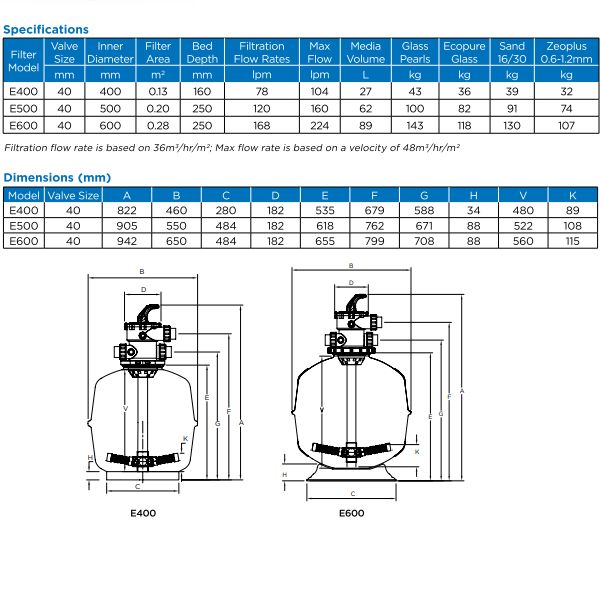

Product Specifications

Valve Size
40 mm — all models
Construction
Precision injection-moulded thermoplastic UV and corrosion resistant
Filter Inner Diameter
E400: 400 mm E500: 500 mm E600: 600 mm
Filter Area
E400: 0.13 m² E500: 0.20 m² E600: 0.28 m²
Filter Bed Depth
E400: 160 mm E500: 250 mm E600: 250 mm
Maximum Flow Rate
E400: 104 L/min E500: 160 L/min E600: 224 L/min
