Pumps

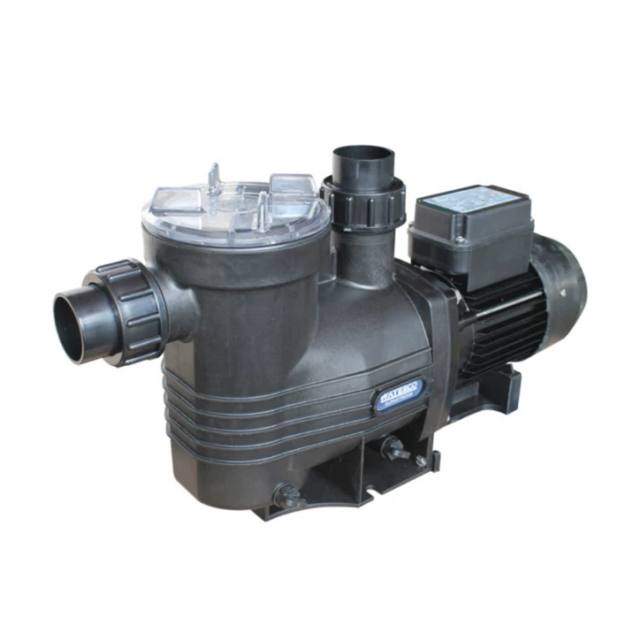

Waterco Supastream Swimming Pool Pumps
The Waterco Supastream Swimming Pool Pump is a general-purpose pump designed for swimming pools and low-pressure water recirculation applications. Available in 0.50 HP, 0.75 HP, 1.00 HP and 1.50 HP models, it combines efficient hydraulic performance with durable construction for reliable pool circulation.
Waterco’s Secondary Seal provides additional motor protection, while the 1.5 L strainer basket helps capture debris before it reaches the pump impeller.
Waterco’s Secondary Seal provides additional motor protection, while the 1.5 L strainer basket helps capture debris before it reaches the pump impeller.
Price on request — enquire for a quote.
Please refer to Waterco’s warranty terms and conditions.
Product Details

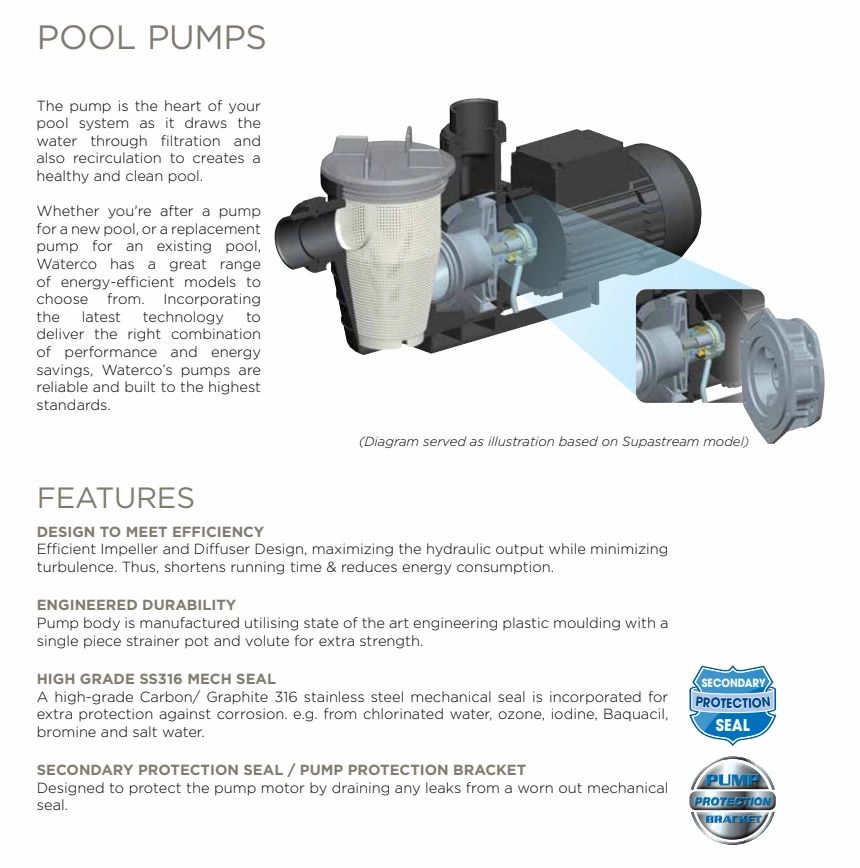

Efficient & Durable Pool Pump Design
The Supastream uses an efficient impeller and diffuser design to maximise hydraulic output while minimising turbulence.
Its pump body is manufactured from engineering plastic with a single-piece strainer pot and volute for added strength. A high-grade carbon/graphite mechanical seal with a 316 stainless-steel spring assembly provides additional corrosion protection.
Key Features
- Waterco Secondary Seal motor protection
- 1.5 L strainer basket with clear lid
- Quick-connect barrel unions
- IP44 fan-cooled motor
- 303-grade stainless-steel motor shaft
- Thermal overload protection
- Stable support base and drain plugs

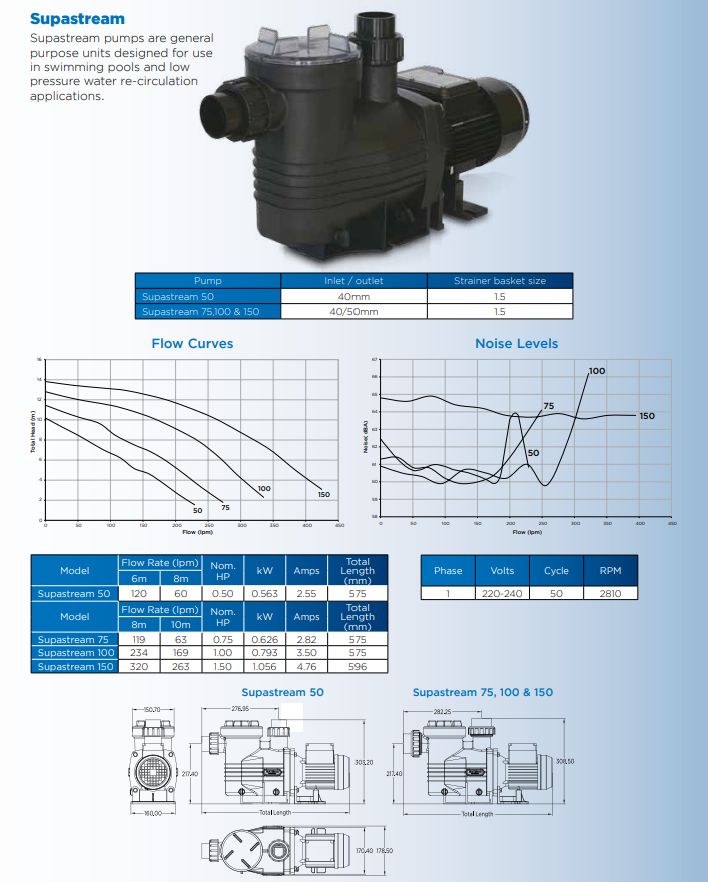

Product Specifications
- Flow Rate
- 0.50 HP: 120 L/min @ 6m · 60 L/min @ 8m 0.75 HP: 119 L/min @ 8m · 63 L/min @ 10m 1.00 HP: 234 L/min @ 8m · 169 L/min @ 10m 1.50 HP: 320 L/min @ 8m ·263 L/min @ 10m
- Power
- 0.50 HP: 0.563 kW 0.75 HP: 0.626 kW 1.00 HP: 0.793 kW 1.50 HP: 1.056 kW
- Rated Current
- 0.50 HP: 2.55 A 0.75 HP: 2.82 A 1.00 HP: 3.50 A 1.50 HP: 4.76 A
- Strainer Basket
- 1.5 L
- Electrical Supply
- Single phase · 220–240 V · 50 Hz
- Motor Speed
- 2810 RPM
Frequently Asked Questions
What is the Waterco Supastream pump designed for?
The Supastream is designed for swimming pools and low-pressure water recirculation applications.
What is Waterco’s Secondary Seal?
Waterco’s Secondary Seal is designed to capture leakage from a worn mechanical seal and drain the water away from the pump motor, providing an additional level of motor protection.
What voltage does the Supastream operate on?
The Waterco technical brochure specifies single-phase 220–240 V, 50 Hz operation.
