Pumps

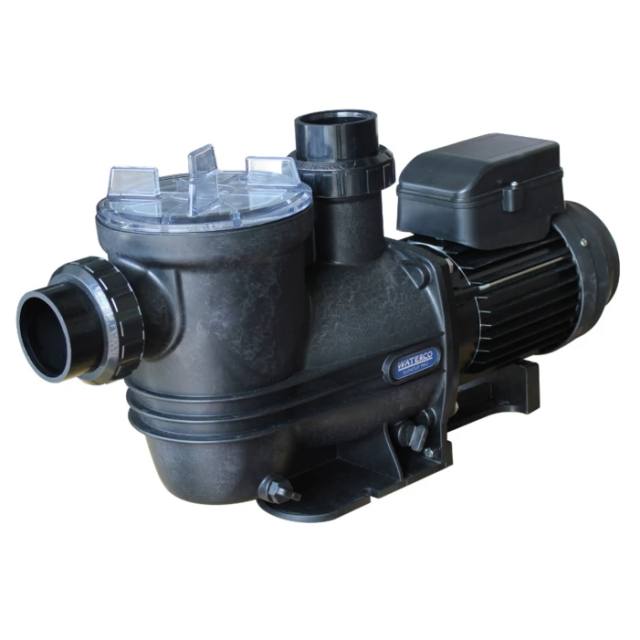

Waterco Supatuf Swimming Pool Powerful Pumps
The Waterco Supatuf MK2 Swimming Pool Pump is designed for large domestic swimming pools and pool systems with additional equipment such as heating, in-floor cleaning, fountains, vacuum cleaning and swim jets.
Available from 1 HP to 3 HP, including single-phase and three-phase options, the Supatuf MK2 features a 2.1 L strainer basket and Waterco Secondary Seal protection for reliable pool circulation.
Available from 1 HP to 3 HP, including single-phase and three-phase options, the Supatuf MK2 features a 2.1 L strainer basket and Waterco Secondary Seal protection for reliable pool circulation.
Price on request — enquire for a quote.
Please refer to Waterco’s warranty terms and conditions.
Product Details

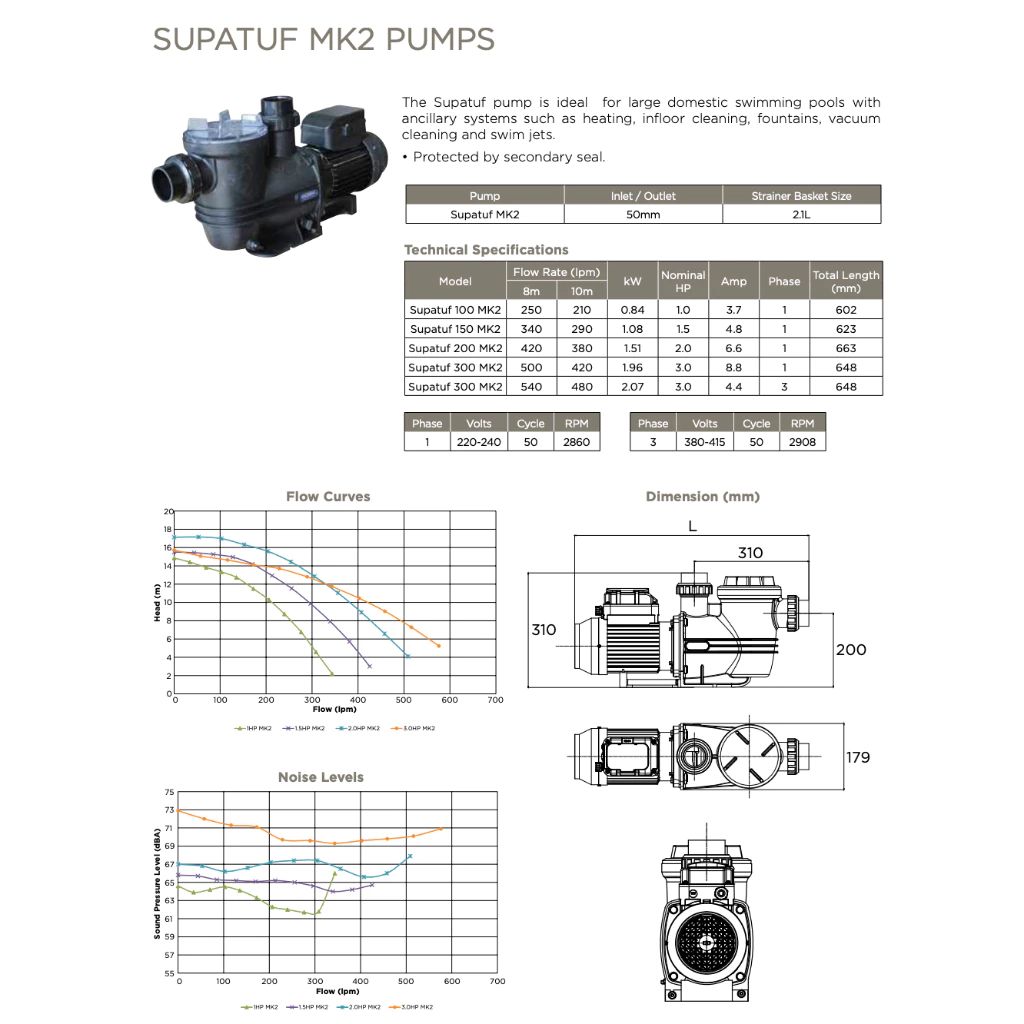

Product Specifications
- Flow Rate
- 1 HP: 250 L/min @ 8m · 210 L/min @ 10m 1.5 HP: 340 L/min @ 8m · 290 L/min @ 10m 2 HP: 420 L/min @ 8m · 380 L/min @ 10m 3 HP (Single Phase): 500 L/min @ 8m · 420 L/min @ 10m 3 HP (Three Phase): 540 L/min @ 8m · 480 L/min @ 10m
- Power
- 1 HP: 0.84 kW 1.5 HP: 1.08 kW 2 HP: 1.51 kW 3 HP (Single Phase): 1.96 kW 3 HP (Three Phase): 2.07 kW
- Rated Current
- 1 HP: 3.7 A 1.5 HP: 4.8 A 2 HP: 6.6 A 3 HP (Single Phase): 8.8 A 3 HP (Three Phase): 4.4 A
- Electrical Supply
- Single Phase: 220–240 V · 50 Hz Three Phase: 380–415 V · 50 Hz
- Motor Speed
- Single Phase: 2860 RPM Three Phase: 2908 RPM
- Inlet / Outlet
- 50 mm
- Strainer Basket
- 2.1 L
- Total Length
- 1 HP: 602 mm 1.5 HP: 623 mm 2 HP: 663 mm 3 HP (Single Phase): 648 mm 3 HP (Three Phase): 648 mm
Frequently Asked Questions
What is the Waterco Supatuf MK2 designed for?
The Supatuf MK2 is designed for large domestic swimming pools, including systems with heating, in-floor cleaning, fountains, vacuum cleaning and swim jets.
What sizes are available?
The Supatuf MK2 is available in 1 HP, 1.5 HP, 2 HP and 3 HP configurations. The 3 HP model is available in both single-phase and three-phase versions.
What size connections does the Supatuf MK2 use?
The Supatuf MK2 uses 50 mm inlet and outlet connections.
What size is the strainer basket?
The Supatuf MK2 has a 2.1 L strainer basket.
What is Waterco's Secondary Seal?
Waterco's Secondary Seal is designed to provide additional motor protection by capturing leakage from a worn mechanical seal and directing the water away from the pump motor.
